3. Evaluate behavior parameters

In this notebook, we will use the trained model to evaluate the dynamics behvior parameters: g, v, D for each cell. The combination of these three parameter shapes the dynamic behavior of a cell. We can archive taht by reading the experimental config file and easily:

• load the trained model

• load the data

• evaluate the parameters

• perform short-term simulation

%load_ext autoreload
%autoreload 2

import os, sys
if sys.platform.startswith("darwin"):
    os.environ['KMP_DUPLICATE_LIB_OK']='True'

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import scanpy as sc
sc.settings.set_figure_params(frameon=False, dpi=30)

import pseudodynamics as pdp
os.chdir(pdp.main_dir)
print("workding directory changed to:", pdp.main_dir)

workding directory changed to: /rds/user/wz369/hpc-work/pseudodynamics_plus

Experimental Config

tompos_config_path = "logs/tom_pos-DM_scaled_n[0, 1, 2, 3, 4, 6, 8]/pde_params_tsense/V4_config.json"
tompos_config = pdp.ExperimentConfig(config=tompos_config_path)

tompos_config.find_lastest_ckpt()

'logs/tom_pos-DM_scaled_n[0, 1, 2, 3, 4, 6, 8]/pde_params_tsense/lightning_logs/version_4/checkpoints/epoch=95-total_loss=1.33532071.ckpt'

from pseudodynamics import models
pde_model = models.pde_params.load_from_checkpoint(
                    checkpoint_path = tompos_config.find_lastest_ckpt(),
                    map_location='cpu')

Check whether it learns time-dependent parameters

pde_model.time_sensitive

True

resume dataloder

We can retrieve which single cell dataset to use from basic experimental config

# load config
data_name = tompos_config.experiment_config['dataset']
print(data_name)

# load adata
adata = sc.read_h5ad(f"data/{data_name}.h5ad")
adata

tom_pos

AnnData object with n_obs × n_vars = 49390 × 4814
    obs: 'n_genes', 'n_counts', 'mt_count', 'mt_frac', 'doublet_scores', 'predicted_doublets', 'xist_logn', 'Ygene_logn', 'xist_bin', 'Ygene_bin', 'sex_adata', 'biosample_id', 'cellid', 'RBG', 'SLXid', 'index', '10xsample_description', 'sex_mixed', 'sex_meta', 'mouse_id', 'sortedcells', 'expected_cells_10x', 'cellranger_cellsfound', 'chemistry', 'tom', 'expdate', 'batch', 'timepoint_tx_days', 'start_age', 'sample_id', 'countfile', 'S_score', 'G2M_score', 'phase', 'leiden', 'SLX', 'plate_sorted', 'plate_rearranged', 'well_sorted', 'well_rearranged', 'set_index', 'CI_index', 'mouse_platelabel', 'sort_method', 'sample.name', 'population', 'sex', 'countfolder', 'batch_plate_sorted', 'data_type', 'sex_combined', 'longname', 'anno_man', 'leiden_DM', 'HSCscore', 'nn_HSCscore', 'isroot', 'dpt_pseudotime', 'leiden_orig', 'logk', 'net_prolif', 'log10SR', 'log_density_at_E3', 'log_density_at_E7', 'log_density_at_E12', 'log_density_at_E12_clip', 'log_density_at_E3_clip', 'log_density_at_E7_clip', 'log_density_at_E27', 'log_density_at_E27_clip', 'log_density_at_E49', 'log_density_at_E49_clip', 'log_density_at_E76', 'log_density_at_E76_clip', 'log_density_at_E112', 'log_density_at_E112_clip', 'log_density_at_E161', 'log_density_at_E161_clip', 'log_density_at_E269', 'log_density_at_E269_clip', 'pseudo_bulk', 'rs50', 'split', 'fine_anno'
    var: 'symbol', 'gene_ids-10x', 'feature_types-10x', 'genome-10x', 'n_counts-10x', 'highly_variable-10x', 'means-10x', 'dispersions-10x', 'dispersions_norm-10x', 'gene_removed-10x', 'mean-10x', 'std-10x', 'geneid-SS2', 'chromosome-SS2', 'is_mito-SS2', 'highly_variable', 'mean', 'std'
    uns: 'DM', 'DM_EigenValues', 'anno_man_colors', 'biosample_id_colors', 'data_type_colors', 'density_predictor', 'diffmap_evals', 'fine_anno_colors', 'iroot', 'isroot_colors', 'leiden', 'leiden_DM_colors', 'leiden_DM_sizes', 'leiden_colors', 'leiden_sizes', 'neighbors', 'original_pop', 'paga', 'pagaDM', 'pagaPCA', 'pca', 'phase_colors', 'pop', 'predicted_doublets_colors', 'pseudo_bulk', 'pseudo_bulk_settings', 'rank_genes_groups', 'rs50', 'umap_init_pos', 'umap_init_pos_DM'
    obsm: 'DM_EigenVectors', 'DM_scaled', 'Delta_DM', 'TIGON_u', 'X_diffmap', 'X_pca', 'X_pca_harmony', 'X_pca_scaled', 'X_umap', 'X_umap_2d', 'X_umap_3d', 'X_umap_DM_2d', 'X_umap_DM_3d', 'mellon_u', 'surrogate_u'
    varm: 'PCs'
    obsp: 'DM_Kernel', 'DM_Similarity', 'DM_connectivities', 'DM_distances', 'connectivities', 'distances'

We can resume a DataSet object with the single-cell data and the settings. By default we use the TwoTiempoint_AnnDS which trains the model for connecting two consecutive time points.

# # To resume the original dataloader without masked-out time point
from pseudodynamics import reader
DS_sub = pdp.reader.TwoTimpepoint_AnnDS(AnnData=adata, split = 'train',
                                **tompos_config.dataset_config
                              )

====================
Dataset : Computing density :
	 `density_funs` not specified, default estimator gaussian kde

# To resume the full dataset with all time points
ds_config = tompos_config.dataset_config.copy()
ds_config['timepoint_idx'] = None

DS_full = reader.TwoTimpepoint_AnnDS(AnnData=adata, split = None,
                            **ds_config
                        )

====================
Dataset : Computing density :
	 `density_funs` not specified, default estimator gaussian kde
Dataset : all cells are used

Predict dynamic parameters for single cell

pseudodynamics+ follows a advected-diffusion equotion to model the density changes :

\[ \frac{\partial }{{\partial t}}u\left( { \mathbf{s},t} \right) = \underbrace{g\left( { \mathbf{s},t} \right)u\left( { \mathbf{s},t} \right)}_{\textrm{growth}} - \underbrace{\nabla_{\mathbf{s}} \left( {v\left( { \mathbf{s},t} \right)u( \mathbf{s},t)} \right)}_{\textrm{drift}} + \underbrace{\nabla_{\mathbf{s}} \left( {D\left( { \mathbf{s},t} \right)\nabla_{\mathbf{s}} u( \mathbf{s},t)} \right)}_{\textrm{diffusion}} \]

We takes all the captured single cell expression and its low-dimensional representation as the full cell state space. For time-dependent parameters, the growth rate (\(g\)), differentation rate (\(v\)) and Diffusion (\(D\)) can change by \(t\) even for the same cell state \(s\).

# here we have a one-line code to predict the parameters for all cell and time point
g_pred_ay, v_pred_ay, D_pred_ay = pde_model.predict_param(DS_full)


print(f'the number of cell : {adata.shape[0]}')
print(f'the number of time points : {adata.uns["pop"]["t"].shape[0]}' )
print('the shape of growth rate :\t\t', g_pred_ay.shape)
print('the shape of differentaition rate :\t', v_pred_ay.shape)
print('the shape of diffusion :\t\t', D_pred_ay.shape)

the number of cell : 49390
the number of time points : 9
the shape of growth rate :		 (9, 49390)
the shape of differentaition rate :	 (9, 49390, 10)
the shape of diffusion :		 (9, 49390)

# we can visualize the growth rate by

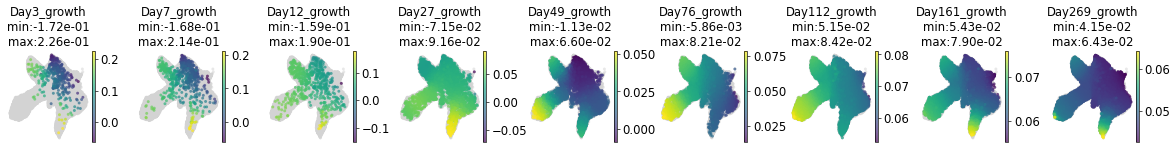

fig, ax = pdp.pl.params_in_umap(adata, prediction=g_pred_ay, param = 'growth')

prediction of shape (9, 49390)

Differentiation rate is a high-dimensional vector which denotes the immediate movement in every dimension of the diffusion map space. To visualize it, we calculate the vectorial sum which represent the overall distance of movement in a short time interval.

v_norm = np.sqrt(np.sum(v_pred_ay**2, axis=-1))

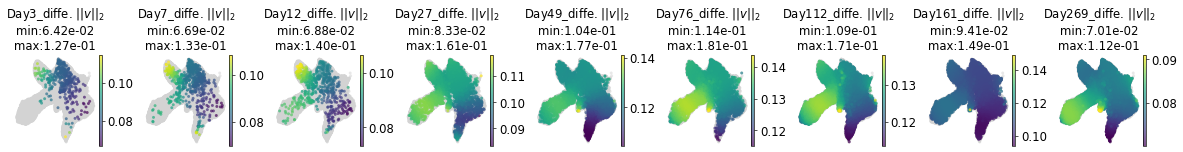

fig, ax = pdp.pl.params_in_umap(adata, prediction=v_norm, param = r'diffe. $||v||_2$')

prediction of shape (9, 49390)

For computational simplicity, pseudodynamics+ assumes an isogenic diffusion parameter, which means \(D\) is the same for all dimension. Parameter \(D\) also buffers the under-fit density changes during training, which makes it diffcult to interpret.

predicting parameters for arbitrary time point

pseudodynamics+ learns a behavior network corresponding to each parameter. This network allows us to impute the parameters for any time point.

import torch
# the cell state matrix
s = torch.from_numpy(DS_full.cellstate).float()
print(s.shape, s.dtype)

torch.Size([49390, 10]) torch.float32

# for example we impute day 5 and day 18
g_impute = []

with torch.no_grad():

    for t in [5,18,36]:
        t_input = torch.Tensor([t]).broadcast_to((s.shape[0],1))     # make them a tenso
        g_t = pde_model.g(s,t_input).cpu().numpy()
        g_impute.append(g_t)

    g_impute = np.stack(g_impute)
    print(g_impute.shape)

(3, 49390)

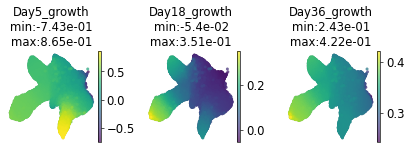

fig, ax = pdp.pl.params_in_umap(adata, prediction=g_impute, param = 'growth', timepoints=[5, 18, 36], cell_of_t=False)

prediction of shape (3, 49390)

continuous parameters

Next we inspect the evolution of the parameters in a time-continuous way. For the ease of visualisation, we group the parameters by cell types.

#
grouped_params = pdp.tl.continuous_params(pde_model, DS_full,
                                        param='g',
                                        groupby_key='fine_anno',  # group parameters by refined cell type, set to None if you want to keep single cell resolution
                                        n_interval=10,      # the resolution, the number of time intervals between two observed time points
                                        device='cpu')

grouped_param = pd.concat(grouped_params, axis=0)
grouped_param['g'] = grouped_param['g'].values
grouped_param = grouped_param.query("`ct_of_day` > 10")   # only include cell type with more than 10 cells at the time
grouped_param['variable'] = grouped_param.variable.astype(float)

from 1.0 to 2.3333333333333335
from 2.3333333333333335 to 4.0
from 4.0 to 9.0
from 9.0 to 16.333333333333332
from 16.333333333333332 to 25.333333333333332
from 25.333333333333332 to 37.333333333333336
from 37.333333333333336 to 53.666666666666664
from 53.666666666666664 to 89.66666666666667

import seaborn as sns

celltype_pallete = dict(zip(adata.obs['fine_anno'].cat.categories, adata.uns['fine_anno_colors']))

all_int_time = grouped_param['variable'].unique()
intermediate_time = all_int_time.astype(float)[np.arange(0,81,5)]
obs_T = all_int_time[np.arange(0,81,10)]

grouped_param_shorter = grouped_param.query('`variable` <= 76')

fig = plt.figure(dpi=60, figsize=(12,6), frameon=True)
fig.tight_layout(rect=[-0.5,-0.6,1.05,1])
ax = plt.gca()

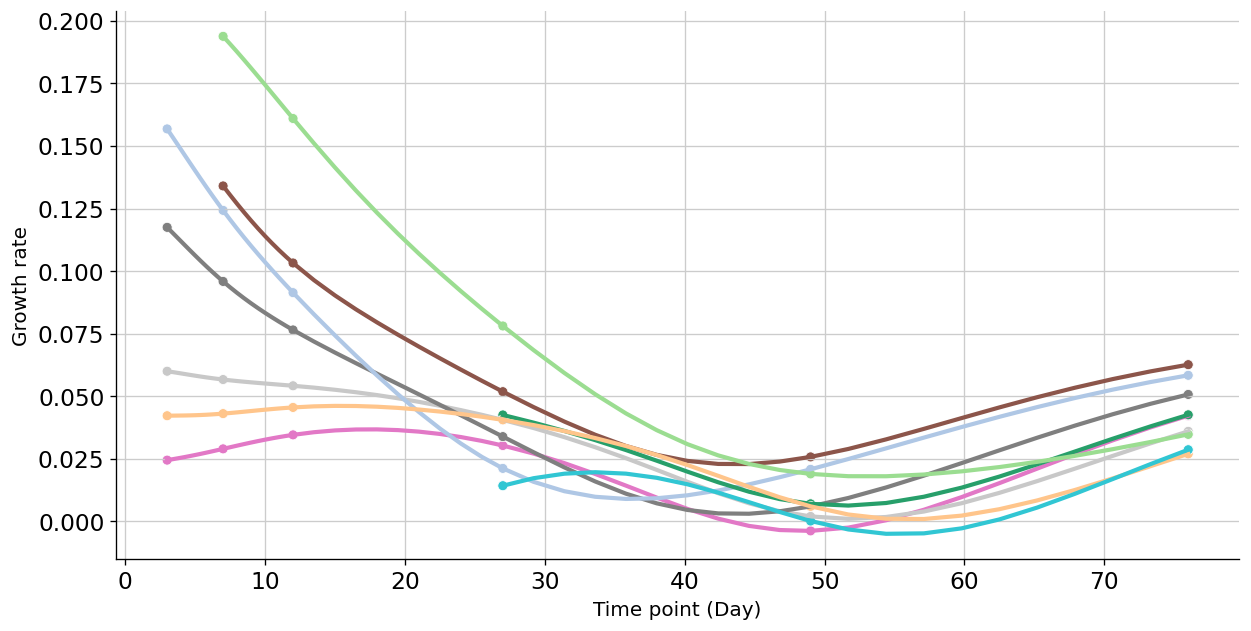

g = sns.lineplot(data=grouped_param_shorter, x='variable', y='g',
                 hue='fine_anno', palette=celltype_pallete,
                 ax=ax, linewidth=2.5,  legend=False,
                 )
sns.scatterplot(data=grouped_param_shorter.query('`variable` in @obs_T'), x='variable', y='g',
                 hue='fine_anno', palette=celltype_pallete,
                 marker='o', legend=False,
                 ax=ax
                 )
g.legend(frameon=False)
sns.despine(ax=g)
g.set_ylabel("Growth rate", fontsize=12)
g.set_xlabel("Time point (Day)", fontsize=12)

Text(0.5, 0, 'Time point (Day)')

relative rate

ct_v = pdp.tl.agg_param(adata, param=v_norm, groupby_key='fine_anno')

# devided by HSC diff. rate at each time point
ct_v = ct_v / ct_v.loc['HSC'].values
ct_v = ct_v.iloc[1:]
ct_v

	3	7	12	27	49	76	112	161	269
fine_anno
Int prog	0.951509	0.948143	0.946480	0.954658	0.971870	0.978862	0.976192	0.971520	0.983403
Meg/Ery prog	1.103668	1.080631	1.053332	1.007929	1.003839	1.012451	1.019313	1.017308	0.996447
Meg prog	1.257982	1.213439	1.154104	1.029407	0.996088	1.010542	1.030349	1.035039	0.986352
Ery prog	NaN	1.126284	1.101114	1.057837	1.045450	1.050072	1.056368	1.062031	1.067730
Bas/MC prog	NaN	NaN	NaN	1.030836	1.035418	1.030897	1.024646	1.025491	1.045519
Mono/DC prog	0.867872	0.870660	0.878811	0.915198	0.951611	0.963209	0.958827	0.953618	0.976415
Neu prog	NaN	1.127819	1.046997	0.888185	0.868440	0.903406	0.917731	0.907134	0.905516
Ly	NaN	NaN	NaN	1.013007	1.010506	1.003521	0.999422	1.002034	1.017815

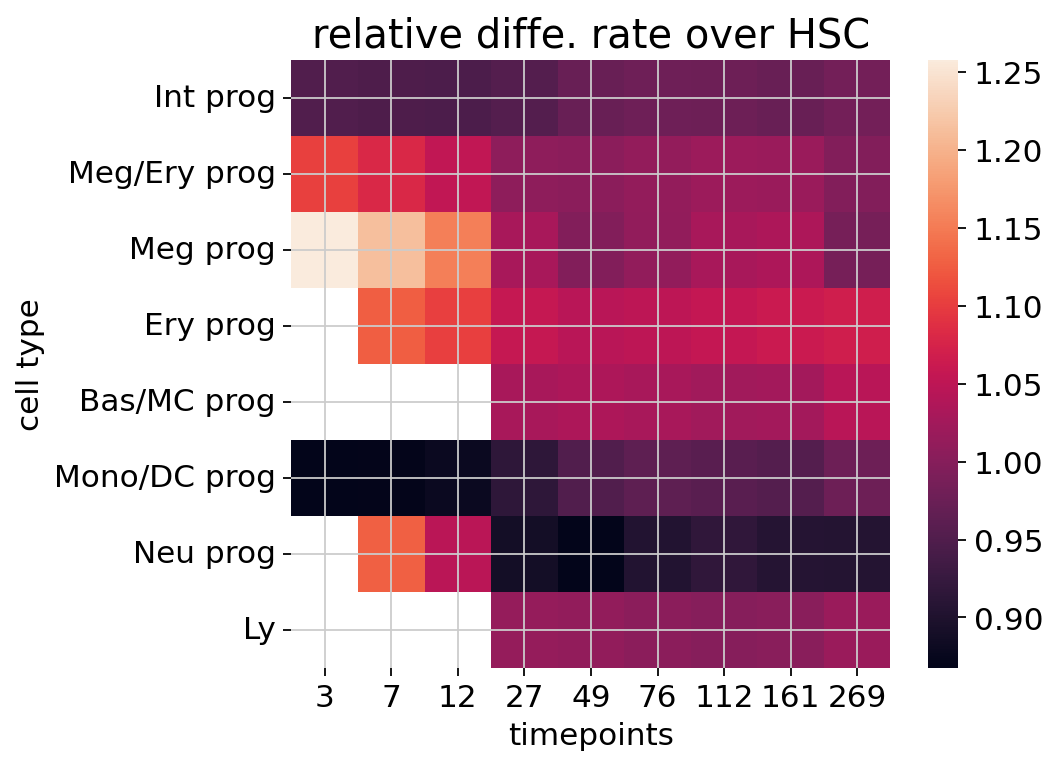

fig = plt.figure(figsize=(6, 5), dpi=80)
ax = fig.gca()
sns.heatmap(data=ct_v, ax=ax)
ax.set_title('relative diffe. rate over HSC', fontsize=18)
ax.set_ylabel('cell type')
ax.set_xlabel('timepoints')

Text(0.5, 32.777777777777786, 'timepoints')

Simulating density change

The above equation describe the change of density over time. Now with the parameters and the suggorate model, we can formulate a simulation of the density change using NeuralODE.

Here when using TwoTimpepoint_AnnDS, we take the based density from the last time point to simualate the density at the next time point.

# a one line code for short term simulation( two consecutive time points)
u_sim = pdp.tl.density_shortterm_simulation(pde_model, DataSet=DS_full, timepoints=adata.uns['pop']['t'])
u_int_all = np.concatenate([DS_full.u_b[0,None], u_sim], axis=0)

print(u_int_all.shape)

simulating from timepoint 3 to 7
simulating from timepoint 7 to 12
simulating from timepoint 12 to 27
simulating from timepoint 27 to 49
simulating from timepoint 49 to 76
simulating from timepoint 76 to 112
simulating from timepoint 112 to 161
simulating from timepoint 161 to 269
(9, 49390)

# unseen time points
seen_i = tompos_config.dataset_config['timepoint_idx']
masked_i = [i for i,t in enumerate(adata.uns['pop']['t']) if i not in seen_i]

masked_t = adata.uns['pop']['t'][masked_i]
seen_t = adata.uns['pop']['t'][seen_i]

print("seen time points : ", seen_t)
print("held-out time points : ", masked_t)

seen time points :  [  3   7  12  27  49 112 269]
held-out time points :  [ 76 161]

The model predict pretty well in terms of the density

# visualize the density at unseen time point during training and compare to ground turth

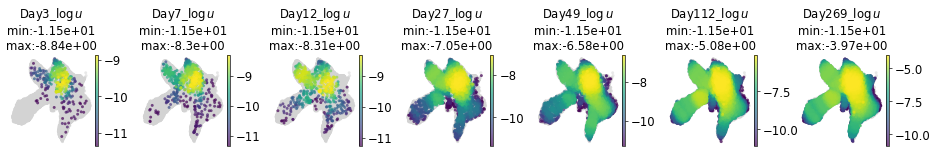

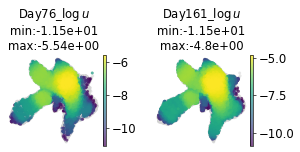

pdp.pl.params_in_umap(adata, np.log(DS_full.u_b[masked_i]+1e-5), timepoints=masked_t, param=r'$\log u$');

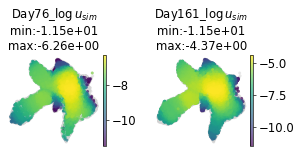

pdp.pl.params_in_umap(adata, np.log(u_int_all[masked_i]+1e-5), timepoints=masked_t, param=r'$\log{u_{sim}}$');

prediction of shape (2, 49390)
prediction of shape (2, 49390)

(<Figure size 162x60 with 4 Axes>,
 array([<Axes: title={'center': 'Day76_$\\log{u_{sim}}$\nmin:-1.15e+01\nmax:-6.26e+00'}, xlabel='UMAP1', ylabel='UMAP2'>,
        <Axes: title={'center': 'Day161_$\\log{u_{sim}}$\nmin:-1.15e+01\nmax:-4.37e+00'}, xlabel='UMAP1', ylabel='UMAP2'>],
       dtype=object))

# let's check the seen time points
pdp.pl.params_in_umap(adata, np.log(DS_full.u_b[seen_i]+1e-5), timepoints=seen_t, param=r'$\log u$');

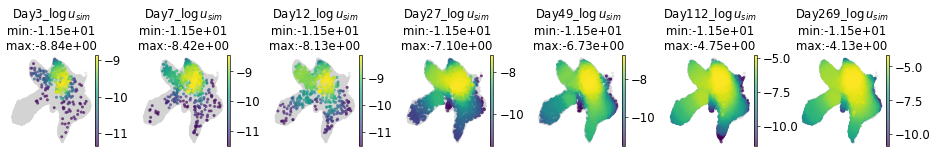

pdp.pl.params_in_umap(adata, np.log(u_int_all[seen_i]+1e-5), timepoints=seen_t, param=r'$\log{u_{sim}}$');

prediction of shape (7, 49390)
prediction of shape (7, 49390)

What’s Next

Link single-cell dynamics behavior with molecualr evidence:

• cell cycle phase (growth rate \(g\))

• differentiation rate association test (diffe. rate \(v\))
